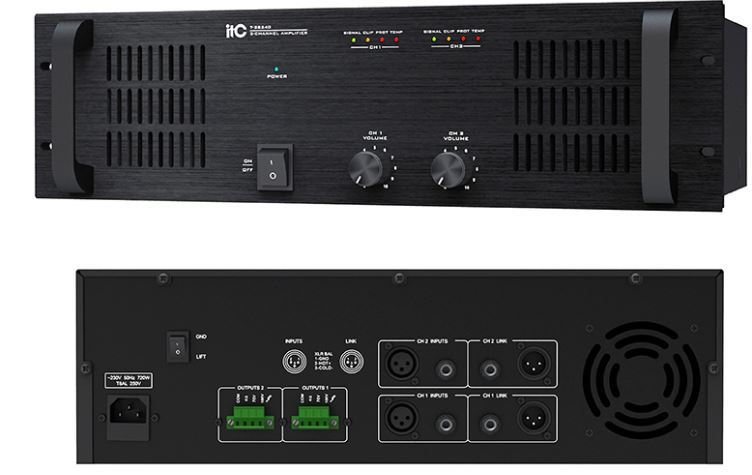

itc 2 Kanal 250 350 500 Power Amplifier

Açıklama

T-2S240 T-2S350 T-2S500

The 2 channel power amplifiers are designed for commercial and industrial public address applications. With two separate amplifier in a single chassis and rated power ranges from 60W, 120W, 240W, 350W to 500W per channel which provides a wide selection to meet different size sound system needs.

The amplifier is design of rack mount type and T-2S60/T-2S120 are in 2U height while T-2S240/T-2S350/T-2S500 are in 3U height.

Both balanced and unbalanced line inputs for each channel make it selectable for installer, balanced line outputs for each channel feed to another power amplifier as well as secure the signal transmission is less noise and longer distance. 70V, 100V and 4-16ohm speaker outputs for each channel are convenient for installation when selection different speaker matching. Master volume controls for each control are included. Complete protection includes

over heat, over load, clip & short circuit. Indications for power, signal, clip, protection and Temp.

Özellikler

* 2 separate amplifier into one chassis

* Rack mount amplifier in 2U (T-2S60/T-2S120) and 3U (T-2S240/T-2S350/T-2S500) types

* Rated power from 60W, 120W, 240W, 350W to 500W per channel

* 70V, 100V and 4-16ohm speaker outputs for each channel

* Isolated transformer for human safety operation

* Balanced XLR type line input and unbalanced 1/4 inch XLR phone jack line input for each Channel

* Balanced XLR type line outputs for each channel feed to another power amplifier

* Reliable protection of over heat, over load, clip & short circuit

* Indications for power, signal, clip, protection and temp

* Excellent device of radiator cooling fan that ensures working effectively

Uygulama

Model

T-2S240

T-2S350

T-2S500

Rated Power Output

2x240W

2x350W

2x500W

Speaker Outputs

70V, 100V & 4~16Ω

Input Sensitivity & Impedance

±385mV/20KΩ, Balanced XLR Input

775mv/10KΩ, Unbalanced TRS Input

Output Sensitivity & Impedance

±385mvV/470Ω, Balanced XLR output

775mv/470Ω, Unbalanced TRS output

Overload Electromotive Force

>15dB

Frequency Response

50Hz~16KHz(+1dB, -3dB)

S/N Ratio

>90dB

THD

Less than 0.1% at 1KHz, 1/3 rated power

Crosstalk

<50dB

Cooling

Fan automatically start up when temp reaches 55℃

Protection

Over heat, over load, clip & short circuit

Power Supply

~110V/60Hz or ~230V/50Hz or DC 24V

Power Consumption

720W

1000W

1500W

Weight

11.3 Kg

25.3Kg

30Kg

Dimensions

484x359x132mm

Finish

Panel: aluminum plate, black

Case: Steel plate, black
