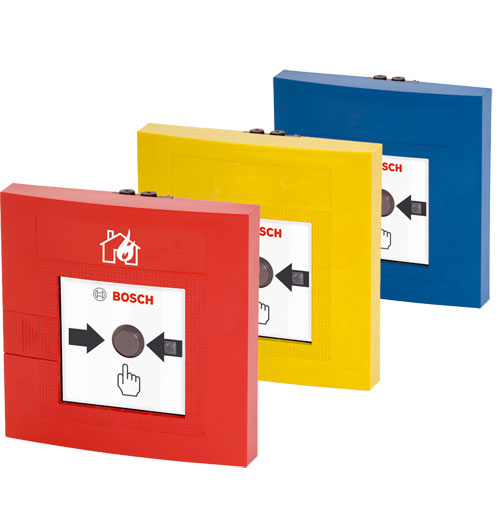

BOSCH FMC-120-DKM YANGIN İHBAR BUTONU
Açıklama
- Adjustment of the manual call point after alarm triggering
- Indicator LED for alarm or for inspection evaluation
- Second contact with connections for panel control
- Variants for indoor and outdoor use
Özellikler
| Operating voltage | 24 V DC (16.2 V DC . . . 30 V DC) |
| Current consumption | Specified by the respective security system |
| Dimensions (W x H x D) | 135 x 135 x 37 mm /5.31 x 5.31 x 1.4 in. |
| Housing material | Plastic (ASA) |
| Colors | Red, RAL 3001Blue, RAL 5005Yellow, RAL 1003 |
| Weight | Approx. 224 g |
| Protection class as per EN 60529 | |
| Form G (indoor area) | IP 52 |
| Form H (outdoor area) | IP 54 |
| Norm | |
| FMC-120-DKM-G-R, FMC-120-DKM-H-R | EN 54-11 |
| FMC-120-DKM-G-Y, FMC-120-EST-G-B | EN 12094-3 |
| Permissible operating temperature | |
| Form G (indoor area) | -10 °C . . . +55 °C / 14 °F … 131 °F |
| Form H (outdoor area) | -25 °C . . . +70 °C / -13 °F … 158 °F |
