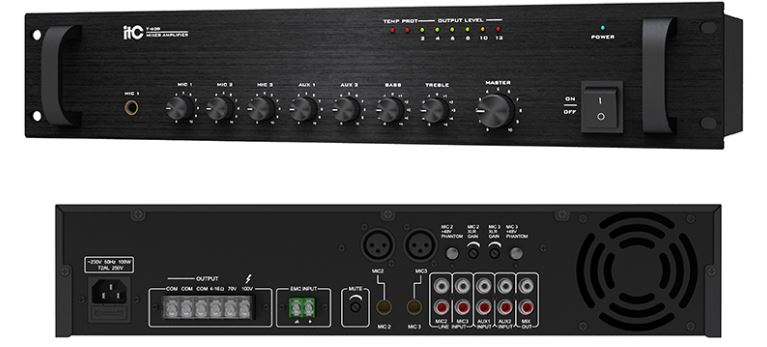

itc mixer amplifier
Açıklama
* Mixer amplifier for paging and background music system
* Rated power from 60W, 120W, 240W, 350W, 500W to 650W
* 2U rack mount (less than 350W) and 3U rack mount design
* 70V, 100V and low impedance 4-16ohm speaker output
* Three balanced Mic input
* Mic 1(phone jack) with VOX priority and VOX level on front panel
* Mic 2-3 by XLR type on rear panel with phantom power
* Two Aux Inputs and 2 line inputs for spare use
* One EMC priority input
* EMC has priority over all inputs except MIC1
* Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control
* Short circuit, overload and high temp protection
Özellikler
|
Model |
|
TI-1206S |
TI-2406S |
TI-3506S |
||
|
Amplifier Section（Load 100V Output) |
Rated Output Power (THD 1%) |
120W(RMS) |
240W(RMS) |
350W(RMS) |
||
|
Speaker Zone 1~5 Output |
25W MAX |
50W MAX |
70W MAX |
|||
|
Mic Input Section(Mic 1~4 In@1KHz) |
Input Sensitivity/Impedance |
5mV 600Ω/350mV 10KΩ BAL |
||||
|
S/N Ratio |
Better than 75dB |
|||||
|
Frequency Response (±3dB) |
80Hz~16KHz |
|||||
|
Tone Control (Bass:100Hz, Treble:10KHz) |
±10dB |
|||||
|
Phantom Power |
+ 48V |
|||||
|
Line Input Section (Mic 1~2 In@1KHz)
|
Input Sensitivity/Impedance |
350mV/47KΩ |
||||
|
S/N |
Better than 80dB |
|||||
|
Frequency Response (±3dB) |
80Hz~16KHz |
|||||
|
Tone Control (Bass: 100Hz,Treble:10KHz) |
±10dB |
|||||
|
Tel Audio Input
|
Input Sensitivity/Impedance |
0.775V/10KΩ |
||||
|
S/N |
Better than 75dB |
|||||
|
Frequency Response (±3dB) |
50Hz~16KHz |
|||||
|
EMC Audio Input
|
Input Sensitivity/Impedance |
0.775V/10KΩ |
||||
|
S/N |
Better than 75dB |
|||||
|
Frequency Response (±3dB) |
80Hz~16KHz |
|||||
|
Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In) |
1V/600Ω |
|||||
|
Remote MIC Sensitivity/Impedance |
775mV/10KΩ |
|||||
|
THD |
Less than 0.1% at 1KHz, 1/3 rated power |
|||||
|
Power Supply |
~110V/60Hz or ~230V/50Hz & DC 24V |
|||||
|
Power Consumption |
180W |
320W |
500W |
|||
|
Weight |
6.5Kg |
7.1Kg |
7.8Kg |
|||
|
Dimensions |
484x310x88 mm |
|||||
