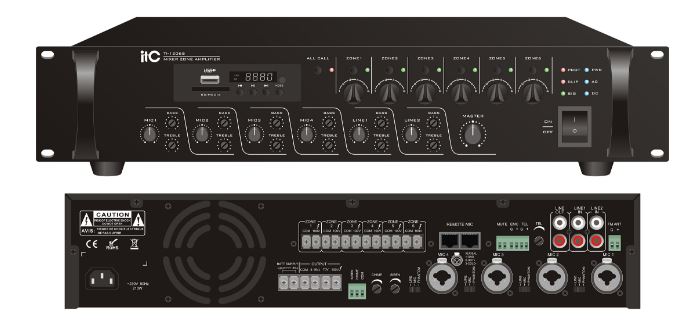

TI-1206S TI-2406S TI-3506S

1.4 channel Mic. inputs, 2 channel line inputs, separated treble and bass control.

2.6-channel zone output, zone volume is independently controlled.

3.Built-in bell, the bell tone is optional, 4 tones and 2 tones (built-in), the alarm generator.

4. MP3 decoder module supports USB / SD / Bluetooth / FM radio playback. Configuring MP3 remote control, support memory function without power input, MIC recording function.

5. When start the built-in generator, the background will turn off and 6-channel zone output will automatically turn on, switch to maximum output volume function.

6. Built-in 24V DC power input

7. MIC1- 4 built-in 48V phantom power and independent control switch.

8. T-216 remote microphone can remote control zone output, the maximum cascade 6pcs Mic.

9. The audio input with separate control, tone control and master volume control

10. A variety of LED display (signal, clip, protection LED indicator)

11. With fan forced cooling structure, to ensure the device to keep long time working
12. There are five priority levels:
EMC with top priority: When there is EMC alarm signal input, it overrides all audio, 6 zone outputs open automatically.
The 2nd priority level: TEL / REM MIC is priority to MIC1-4, LINE1-2,chime.The 3rd priority level: built-in alarm generator is priority toMIC1-4, LINE1-2, 6 zone outputs open automatically.

The 4th priority level :built-in chime is priority to MIC1-4, LINE1-2.
The 5th priority level :built MIC1 is priority to  MIC2-4, LINE1-2.
13. The constant voltage output: 70V, 100V, constant impedance output: 4-16Ω

Model



TI-1206S

TI-2406S

TI-3506S

Amplifier Section（Load 100V Output)

Rated Output Power (THD 1%)

120W(RMS)

240W(RMS)

350W(RMS)

Speaker Zone 1~5 Output

25W MAX

50W MAX

70W MAX





Mic Input Section(Mic 1~4 In@1KHz)

Input Sensitivity/Impedance

5mV 600Ω/350mV 10KΩ BAL

S/N Ratio

Better than 75dB

Frequency Response (±3dB)

80Hz~16KHz

Tone Control (Bass:100Hz, Treble:10KHz)

±10dB

Phantom Power

+ 48V







Line Input Section

(Mic 1~2 In@1KHz)



Input Sensitivity/Impedance

350mV/47KΩ

S/N

Better than 80dB

Frequency Response (±3dB)

80Hz~16KHz

Tone Control (Bass: 100Hz,Treble:10KHz)

±10dB





Tel Audio Input



Input Sensitivity/Impedance

0.775V/10KΩ

S/N

Better than 75dB

Frequency Response (±3dB)

50Hz~16KHz





EMC Audio Input



Input Sensitivity/Impedance

0.775V/10KΩ

S/N

Better than 75dB

Frequency Response (±3dB)

80Hz~16KHz

Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In)

1V/600Ω

Remote MIC Sensitivity/Impedance

775mV/10KΩ

THD

Less than 0.1% at 1KHz, 1/3 rated power

Power Supply

~110V/60Hz or ~230V/50Hz & DC 24V

Power Consumption

180W

320W

500W

Weight

6.5Kg

7.1Kg

7.8Kg

Dimensions

484x310x88 mm
