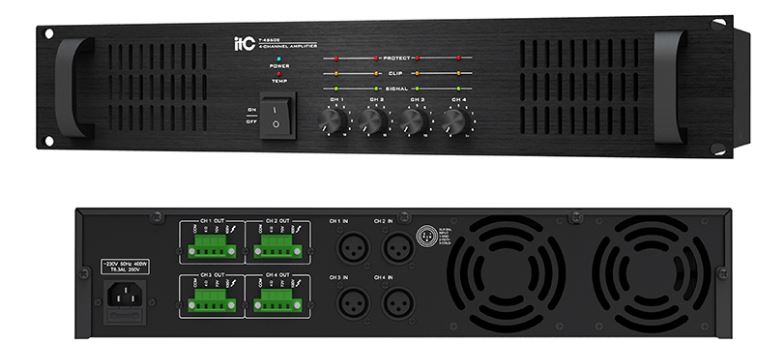

itc 4 Kanal Power Amplifier

Açıklama

The 4 channel power amplifiers are designed for commercial and industrial public address applications. With four separate amplifier in a single chassis and rated power ranges from 60W, 120W and 240W per channel which provides a wide selection to meet different size sound system needs.

The amplifier is design of rack mount type and T-4S60B/T-4S120B are in 2U height while T-4S240B is in 3U height.

Balanced line inputs by XLR types, 70V, 100V and 4ohm speaker outputs for each channel by phoenix types are convenient for installation when selection different speaker matching.

Master volume controls for each control are included. Complete protection includes over heat, over load, clip & short circuit. Indications for power, signal, peak and protection.

Özellikler

* 4 separate amplifier into one chassis.

* Rack mount amplifier in 2U(T-4S60B/T-4S120B) and 3U(T-4S240B) types.

* Rated power from 60W, 120W to 240W per channel.

* 70V, 100V and 4ohm speaker outputs for each channel by phoenix types.

* Isolated transformer for human safety operation.

* Balanced XLR type line input for each channel.

* Reliable protection of over heat, over load, clip & short circuit.

* Indications for power, signal, peak, and protection.

* Excellent device of radiator cooling fanner that ensures working effectively.

Uygulama

Model

T-4S60B

T-4S120B

T-4S240B

Rated Power Output

4x60W

4x120W

4x240W

Speaker Outputs

70V, 100V & 4Ω

Input Sensitivity & Impedance

±385mV/10KΩ, Balanced XLR connector

Overload Electromotive Force

>15dB

Frequency Response

50Hz~16KHz(+1dB, -3dB)

S/N Ratio

>90dB

THD

Less than 0.1% at 1KHz, 1/3 rated power

Crosstalk

<50dB

Cooling

Fan automatically start up when temp reaches 55℃

Protection

Over heat, over load, clip & short circuit

Power Supply

~110V/60Hz or ~230V/50Hz or DC 24V

Power Consumption

400W

720W

1500W

Weight

17.66Kg

21.9Kg

28.6Kg

Dimensions

484x448x88mm

484x449x132mm

Finish

Panel: aluminum plate

Case: steel plate
