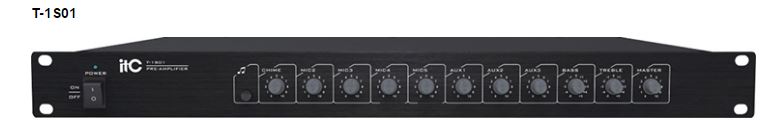

T-1S01

The T-1S01 is a public address pre-amplifier with five balanced MIC inputs, three AUX level inputs and one EMC(priority) level inputs.

Priority muting is achieved via MIC 2 and EMC for overriding music for paging and emergency alarms.

Individual gain controls are provided for MIC and AUX inputs, bass and treble controls are provided for overall tone control.

* 5-channel MIC input and 3-channel Aux input.

* With 1-channel EMC input.

* Independent volume control, MASTER volume control.

* With compulsive insert and Priority function.

* MIC balance input interface with phantom power.

* Individual Gain controls for MIC

* EMC has priority over all inputs except MIC 2

* Bass and Treble Tone Controls

* AC 110V or 230V and DC 24V operation
