itc T-218A 10 Zone Bölge Microfon

Açıklama

T-218(A)

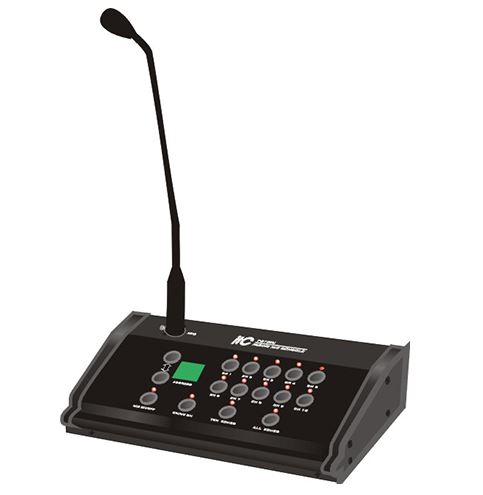

The T-218(A) is a high performance remote zone paging console that works with zone paging controller T-6212(A) for remote paging and control over a multi-zone system.

Several paging modes (all zone, group zones, 10 zones and individual zones) could be achieved through this paging console. Features include capability of 16 microphones and 300 paging zones work at the same time, the T-218(A) will easily distinguish T-6212(A) with its pre-set ID address. T-218(A)'s paging system with priority over background music system.

* With operation number input keys and LED display

* Capacity of manage 30 paging selectors T-6212(A), up to 300 zones

* Max remote control distance up to 1Km

* With microphone volume control

* RCA line input and output

* Built-in chime and chime volume control

* Max 16 microphone work together with RJ45 port in series connection

Özellikler

Model

T-218(A)

Input

MIC:600 Ω , 10mV, unbalanced

Line:10K Ω,775mV, unbalanced

Output

Balanced

Frequency Response

MIC: 100Hz~15KHz; Line: 30Hz~18KHz

S/N Ratio

MIC input: 60dB Line input: 80dB

Controls

Chime MIC VOL controls, 300 channel selectors,

chime button, power switch

Indicators

Powter LED, 10 paging channel LEDs

Power Supply

DC 24V

Power Consumption

10W

Weight

1.25Kg

Dimensions

220x142.7x51.5mm

Communication Protocol

RS422

Communication Input

RJ45

Communication Speed

4800bps

Finish

Panel: steel plate, black

Case: steel plate, black

Side board: plastic, black
