itc Asma Tavan Hoparlörü

Açıklama

T-105U

1. Built-in 100v/70v transformer

2. In-ceiling type loudspeaker

3. 5” speaker unit



4. Power taps 1.5W, 3W & 6W @100V

5. Metal grille & ABS baffle

6.Spring clip fast installation

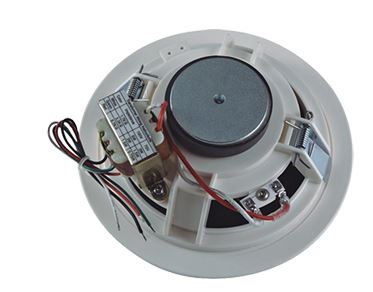

The T-105U is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 5” speaker driver is designed of wide frequency response 80-16kHz, the multiple power taps 1.5W, 3W & 6W are helpful for different applications varies from room size and ambient noise surroundings. The metal grille and ABS baffle are painted in attractive white color. Its spring clip clamp makes the easy and secure installation.

It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed

Özellikler

Model

              T-105U

Power Taps @100V

1.5W, 3W, 6W

Power Taps @70V

0.75W, 1.5W, 3W

Impedance

Black: Com Red:6.7KΩ Green:3.3KΩ White:1.7KΩ

SPL(1W/1M)

89dB

Max. SPL (Rated W/1M)

96dB

Frequency Response (-10dB)

80-16KHz

Finish

Baffle: ABS, white   Grille: Steel, white

Speaker Driver

5" x 1

Cutout Size

145mm

Dimensions

170 x 80mm

Weight

0.75Kg

Mounting

Spring-clip
