itc 106U Asma Tavan Hoparlör

Açıklama

Features

  • Built-in 100v/70v transformer
  • In-ceiling type loudspeaker
  • 6” speaker unit
  • Power taps 3W, 6W & 9W @100V
  • Metal grille & ABS baffle
  • Spring clip fast installation



Description

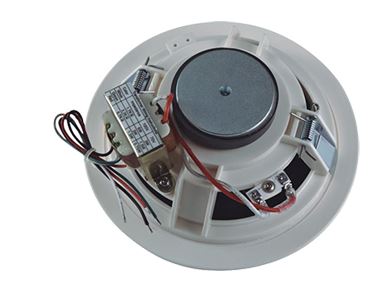

The T-1064U is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 6” speaker driver is designed of wide frequency response 80-16kHz, the multiple power taps 3W, 6W & 9W are helpful for different applications varies from room size and ambient noise surroundings. The metal grille and ABS baffle are painted in attractive white color. Its spring clip clamp makes the easy and secure installation.

It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

Özellikler

Model

T-106U

Power Taps @100V

3W, 6W, 9W

Power Taps @70V

1.5W, 3W, 4.5W

Impedance

Black: Com Red:3.3KΩ Green:1.7KΩ White:1.1KΩ

SPL(1W/1M)

91dB

Max. SPL (Rated W/1M)

101dB

Frequency Response (-10dB)

80-16KHz

Finish

Baffle: ABS, White    Grille: Steel, White

Speaker Driver

6" x 1

Cutout Size

170mm

Dimensions

200x 80mm

Weight

0.9Kg

Mounting

Spring-clip

Uygulama

Teknik Özellikler
